SPECIFICATIONS

Brand Name: other

Delay Function: 0s/3s/6s delay

Holding Force: 1000KG

Input Voltage: DC 12V

Material: Aluminium Alloy

Model Number: BT002

Origin: Mainland China

Starting Current: 1.2A

Working Current: 150mA

About this item

• Made of aluminum alloy lock body structure, durable and beautiful article. Fail-safe mode, power-on lock, power-off unlock.

• NC Mode: Fail-safe type(Typical application safety exit, fire door), Power-off unlock , when the power is turned on, the red light indicates unlocking and the green light indicates lock.

• Optional NO mode: Fail Secure type(Typical applications bank vaults, data centers, high security areas), Power off Locked, when the power is turned on

• Working with DC 12V, with no external interference, the delay adjustment can be made by itself, and the delay time can be preset to 0s / 3s / 6s.

• NC Mode fail-safe type, please connect the red cable to "+12v”, and black cable to “GND" of the 12VDC power supply when testing it.

• Surface mounted, suitable for wooden door, Metal door, Fireproof door, etc. can be opened by push button, remote control, etc. (Not included)

Features:

• Surface mounted installation, aluminum alloy material, lock body use hexagon screw, fixed panel, anti-theft and more security.

• Special circuit design, with no external interference, the door will unlock until the power is cut off, with 0, 3, 6 seconds time delay adjustable.

• Suitable For: Wooden door, Glass door, Metal door, Fireproof door, etc.

Specifications:

Suitable for: Wooden door, Glass door, Metal door, Fireproof door, etc.

Suitable for single door or double door.

It can protect your home or company's store.

SPECIFICATIONS

Backlight: has white backlight.

Brand Name: NoEnName_Null

Card reading distance: 0-5 cm.

Card reading type: support EM ID and MF 1K compatible cards

Certification: CE

Identification method: RFID card, password, RFID card password, NFC

Material: ABS high-quality material.

Model Number: S1000-B

Operating frequency: 125 kHz and 13.56 MHz dual frequency.

Origin: Mainland China

Panel: touch screen panel.

Smart home platform: None

Usage capacity: 1000

Waterproof function: IP68 waterproof, can be installed outdoors

I.Main Features

[1] Has white backlight, the numbers can be seen even in the dark. Has a doorbell button, can be connected to an additional doorbell.

[2] Supports dual frequency 125KHz, 13.56MHz. Supports EM and Mi Fare cards. Supports large capacity of 10000 user cards, 10000 password. Safer!

[3] Supports mobile phone NFC, RFID card, password, RFID card and password verification methods. IP68 waterproof access control keyboard that can be installed outdoors.

[4] Full programming via keyboard. Can set management card. Very easy to program! No need to connect to computer, do not need software.

[5] Has WG26, WG34 Wiegand interface, can be connected to an additional card reader. Can set 0-99 seconds door opening time. Can adjust normally open model. Works with DC12V/18V/24V voltage.

Key Features

* IP68 waterproof keyboard for access control, can be installed outdoors.

* Touch panel, very beautiful appearance. Made of high quality plastic.

* Works with 125KHz and 13.56MHz dual frequency. Supports EM4100, TK4100, S50, Mi-Fare, etc RFID chip cards.

* Support RFID cards, password, RFID card password, mobile phone NFC to open the door.

* Set the management card. Very easy to program! Full programming via keyboard. No need for software.

* Has a white backlight, the numbers can be displayed even in the dark.

* Has a WG26, WG34 Wiegand interface, can be connected to an additional card reader.

* Has a doorbell button, can be connected to an additional doorbell.

* Can adjust normally open model. Frequent entry and exit can be adjusted to normal open model.

Product specification:

• Usage capacity: 1000.

• Material: ABS high-quality material.

• Panel: touch screen panel.

• Operating frequency: 125 kHz and 13.56 MHz dual frequency.

• Card reading type: support EM ID and MF 1K compatible cards

• Card reading distance: 0-5 cm.

• Identification method: RFID card, password, RFID card password, NFC

• Backlight: has white backlight.

• Waterproof function: IP68 waterproof, can be installed outdoors

• Doorbell button: support wired doorbell

• Wiegand signal: WG26 and WG34 input/output.

• Can set management card: yes.

• Operating voltage: DC 12 V,DC24V,DC18V.

• Door opening time: 0-99 seconds.

• Operating temperature: -20 °C, 70 °C.

• Working humidity: 20% ~ 90%.

Package list

• 1 x RFID waterproof keyboard.

• 10 x RFID 125 kHz key rings or Cards(Optional)

SPECIFICATIONS

Brand Name: NoEnName_Null

Certification: CE,FCC,RoHS

Delay Function: 0s/3s/6s delay

Holding Force: 1000KG

Input Voltage: DC 12V

Material: Aluminium Alloy

Model Number: BT002

Origin: Mainland China

Starting Current: 1.2A

Working Current: 150mA

About this item

• Made of aluminum alloy lock body structure, durable and beautiful article. Fail-safe mode, power-on lock, power-off unlock.

• NC Mode: Fail-safe type, Power-off unlock , when the power is turned on, the red light indicates unlocking and the green light indicates lock.

• Optional NO mode: Fail Secure type, Power off Locked, when the power is turned on

• Working with DC 12V, with no external interference, the delay adjustment can be made by itself, and the delay time can be preset to 0s / 3s / 6s.

• NC Mode fail-safe type, please connect the red cable to "+12v”, and black cable to “GND" of the 12VDC power supply when testing it.

• Surface mounted, suitable for wooden door, Metal door, Fireproof door, etc. can be opened by push button, remote control, etc. (Not included)

Features:

• Surface mounted installation, aluminum alloy material, lock body use hexagon screw, fixed panel, anti-theft and more security.

• Special circuit design, with no external interference, the door will unlock until the power is cut off, with 0, 3, 6 seconds time delay adjustable.

• Suitable For: Wooden door, Glass door, Metal door, Fireproof door, etc.

Specifications:

Suitable for: Wooden door, Glass door, Metal door, Fireproof door, etc.

Suitable for single door or double door.

It can protect your home or company's store.

SPECIFICATIONS

Bracket: L Bracket / U Bracket / ZL Bracket

Brand Name: OBO HANDS

Certification: CE

Choice: yes

Direction: None

Holding Force: 180KG/350lbs

Lock: 180KG Electric Magnetic Lock

Material: Aluminum alloy shell + iron plate

Model Number: 180KG bracket

Origin: Mainland China

Secure mode: NC model (fail safe model)

Security Mode: Fail Safe

Working Current: 380-500mA

Working Voltage: DC12V

DC12V Access Control Electric Magnetic Door Lock

 Holding Force with 180KG/350lbs / High Quality

Install Figure 1

1. Put the dowel pin into the suction plate.

2. Put the bonded washer.

3. The bonded washer make suction stronger.

4. Remove the hanging plate.

5. Fixed hanging plate.

6. Using the spanner and inner hexagon screws to fix the plate on the lock body.

7. Close the door to test the pulling force, can add or delete the bonded washer to adjust the adsorption

    surface of plate between with the lock body.

8. Tighten the tamper screws.









Install Figure 2

For in-swing door, install the lock body inside and then need to install the ZL bracket at the same time.

Discharge the mounting plate from lock body.

Fix the L bracket on the door frame and then fix the lock body on the L bracket.

Assemble the Z bracket and then fix it on the door frame.

Fix the armature plate on the Z bracket.







SPECIFICATIONS

Brand Name: Asia-Teco

Mobile APP: Tuya APP

Model Number: T12EM-wifi / T12MF-wifi Tuya,T12EM-wifi/T12MF-wifi

Origin: Mainland China

Reading Distance: 0-6cm

Security Mode: Fail Safe with Signal

Smart home platform: Tuya,Tuya app

User Capicity: 2000 user

Working Current: <100mA

Working Frequency: 125Khz/13.56Mhz

Working Voltage: DC12V

backlight: support

port: NO/NC/COM/D0/D1

remote control open lock: support

waterproof Grade: Non-waterproof

wiegand: WG26/34 input output

wifi connection: 2.4G wifi

SPECIFICATIONS

Brand Name: OBO HANDS

Certification: CE

Choice: yes

Material: High quality ABS

Model Number: S10IC TUYA+10

Origin: Mainland China

Unlock method: Tuya APP, RFID Card, Password, RFID Card plug Password

User capacity: 1000 users

Waterproof: IP68

Wiegand interface: WG26/34 output

Working Voltage: DC12V

Working frequency: 125KHz, 13.56MHz

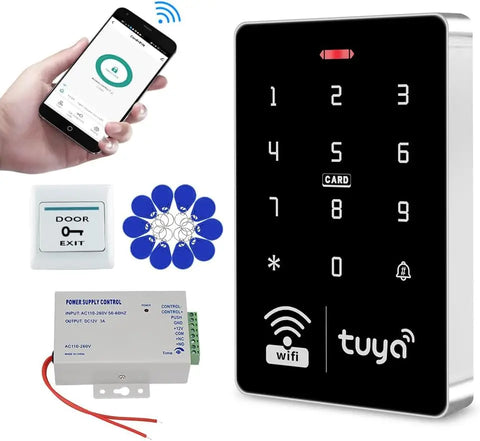

OBO Waterproof RFID Access Control Keypad WiFi Tuya APP Unlock Touch Backlight Access Controller 125KHz WG26 Output System Alarm

IP68 Waterproof Wifi Tuya APP RFID Access Controller

Wifi Tuya APP / RFID Card / Password / RFID Card + Password unlock methods

Product Specification:

• User capacity: 1000 user

• Material: ABS high quality material

• Panel: touch screen panel

• Working frequency: 125KHz and 13.56MHz

• Card reading type: support EM and MF compatible card

• Card reading distance: 0-5CM

• ldentification method: RFID card, Password, RFID Card plus Password, Tuya APP remote unlock.

• Record capacity: Tuya APP remotely view the latest lock opening information

• Backlight: has blue backlight

• Waterproof function: IP68 waterproof, can be installed outdoor

• Doorbell button: support wired doorbell

• Wiegand signal: WG26/34 output

• Working voltage: DC 12V

• Working current: ≤3A

• Door opening time: 0~99 seconds

• Can set Management card: Yes

• Working temperature: -20 ~ 70 Degrees Celsius

• Working Humidity: 10% ~ 90%

• Product size: 115*72*17mm




Product Details:

About Tuya APP

• You can add Password, RFID cards on the APP, it's very convenient.
• You can open the door with Tuya APP unlocking button, or Tuya password.
• A periodic password can be set, and the password is valid for a certain period of time.
• You can also set a one-time password to open the door, and the password will expire after being used once within 6 hours.
• Supports sharing password via WeChat, Email and SMS.
• Can view unlock records. Click reminder information to view logs.

Tuya APP Setting Instruction

1) Scan QR code to download Tuya APP or Search Tuya on App store to download it.
2) Enter *123456 # 041# on the access control machine, wait for 5 seconds for the indicator light to flash and start pairing, pair with the mobile phone via WiFi.
3) Open Tuya APP to add new equipment.
4) Select "Camera & Lock", click "Lock(Wi-Fi)".
5) Connect with available devices. Choose Wi-Fi and enter password.
6) Confirm that the device indicator flashes and click "Done".
7) Select "AP Mode".
8) Connect mobile WiFi to device hotspot.
9) Connecting, Added successfully, click "Done"
10) Click setting, open remote unlock setting.
11) Select user, click "+" to add user, fill in name, click next step, then click “Add" to input 6 digits code or generated code randomly, fill in code name or card name, click "Save".
12) Swiping one card within 60 seconds, add card successfully, then fill card name and click "Done".
13) Then input the related information and click "Next step".
14) Add temporary code, click "Once" , input code name, click "Save offline code" , Done.
Notice: The code valid time for 6 hours and only can be used once.
15) Add ordinary user by clicking ordinary member “+”.

Support Tuya APP remote unlock
You can hold and press the unlock icon to open the door

Support Temporary password unlock
You can set Tuya APP temporary password. Supports sharing password via WeChat, Email and SMS.

Support RFID Card, Password, RFID Card plus Password, Tuya APP to open the door
Support 1000 RFID card and password user capacity.

Can set Management card, very easy to program.
Don't need to connect on computer.
Management cards was not included in the package, need to set them by yourself.

ABS fire retardant material shell

Touch keyboard, very beautiful design. Has a door bell button, can install a wired door bell

Can set normally open mode.
Frequent entry and exit can be set to normally open model



IP68 Waterproof. Can be installed outdoor

With Full PC Glue in the back side, IP68 Rating, can work in the rain and storm

Blue Backlight keypad

The digits number can be seen clearly even at dark

Easy installation and operation

Based on advanced technology, fast recognition speed, high sensitivity.

Suitable for most major access control solution.

RFID Keyfobs

1. Material: ABS
2. Working Frequency: 125KHz

3. Chip: EM4100
4. Support: read only, not support write.
5. Reading distance: 0-5cm
6. Each one has a metal keyring, and unique card number.

7. Color: As picture show, if you want other color, please lease a message to us.

Wiring Diagram:

(Note: Both of the power supply, lock, exit button does  Not  included in the package, need to buy extra)
